Hardware Specifications
| Vendor/Brand | Zisa |
| Model | OP151S |
| ODM | T&W |
| ODM Product Code | TW2362H-CDEL |
| Chipset | Lantiq PEB98035 |
| CPU | MIPS 34Kc interAptiv |
| CPU Clock | 400MHz |
| Flash | 8 MB (GigaDevice GD25Q64CW16) |
| RAM | 64 MB (Nanya NT5TU32M16FG-AC1) |
| System | eCoS |
| SFP interfaces | HSGMII |
| Optics | SC/APC |
| IP address | 10.10.1.1 |
| Web Gui | ✅ username admin or guest, password 1234 or guest |
| SSH | ✅ username admin, password admin |
| Telnet | |
| Serial | ✅ |
| Serial baud | 115200 |
| Serial encoding | 8-N-1 |
| Form Factor | miniONT SFP |
Serial

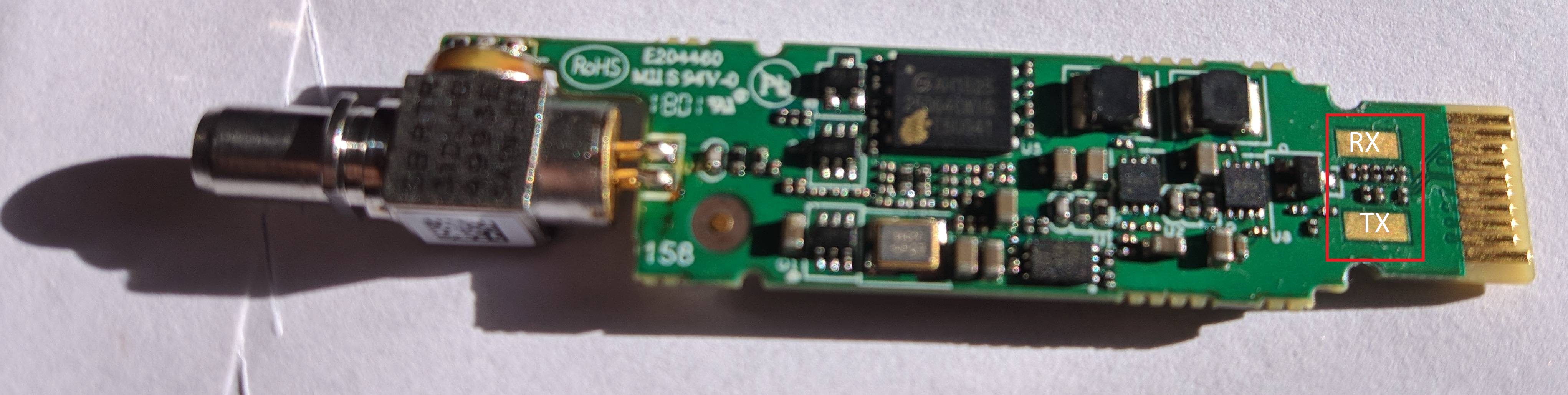

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the top surface: it's near the SFP header. TX, RX and ground pads need to be connected to a USB2TTL adapter that supports 3V3 logic.
Note
Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.
Setting MAC address
The MAC address can be changed via the manufactory menu:
manufactory -> set uni mac addr xx:xx:xx:xx:xx:xxRSTP bridge mode
Enabling RSTP bridge mode with set rstp bridge enable may cause loss of telnet access. If this happens, access can be recovered via UART serial console.
